NovaStar VX4S

• Product Type ：Video Controller

• Inputs ：HDMI, DVI, VGA × 2, CVBS × 2, DP, SDI

• Outputs ：Ethernet port × 4

• Loading Capacity ： 2.35 million pixels ，the maximum pixel CLK is 165MHz

• Video Loop ：DVI LOOP, SDI LOOP

• Video Monitor ：VGA OUT, DVI OUT

• Communication Mode ：USB/LAN

• Image Mosaic ：Support

• Crop Settings ：Support

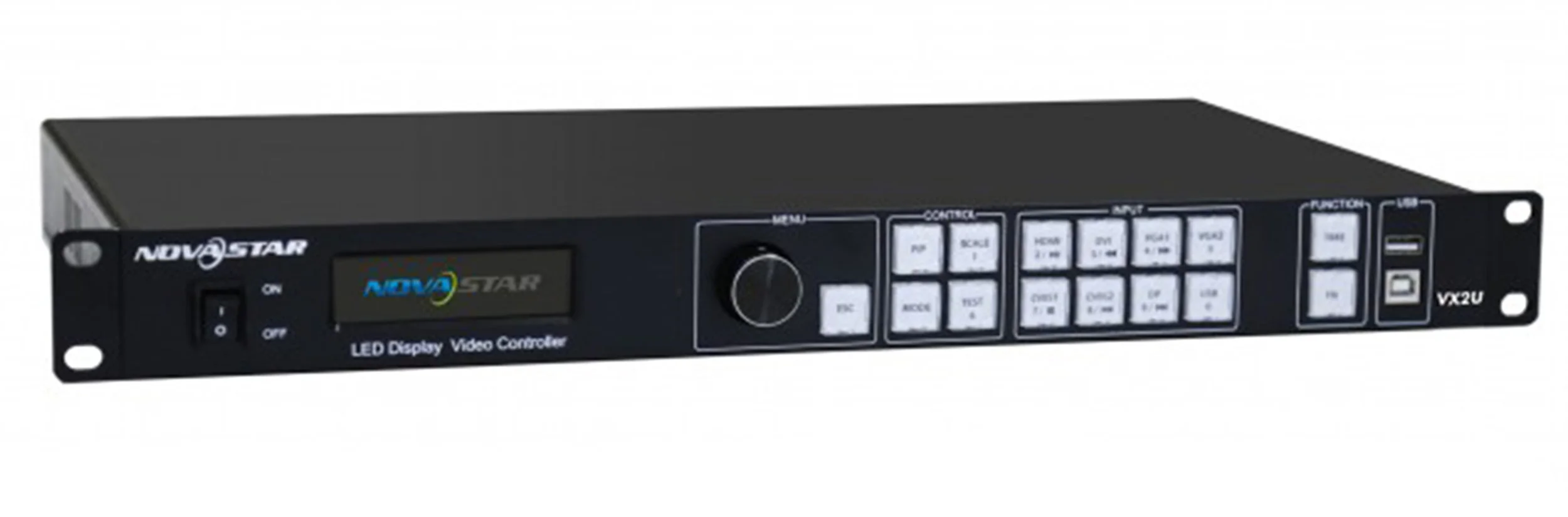

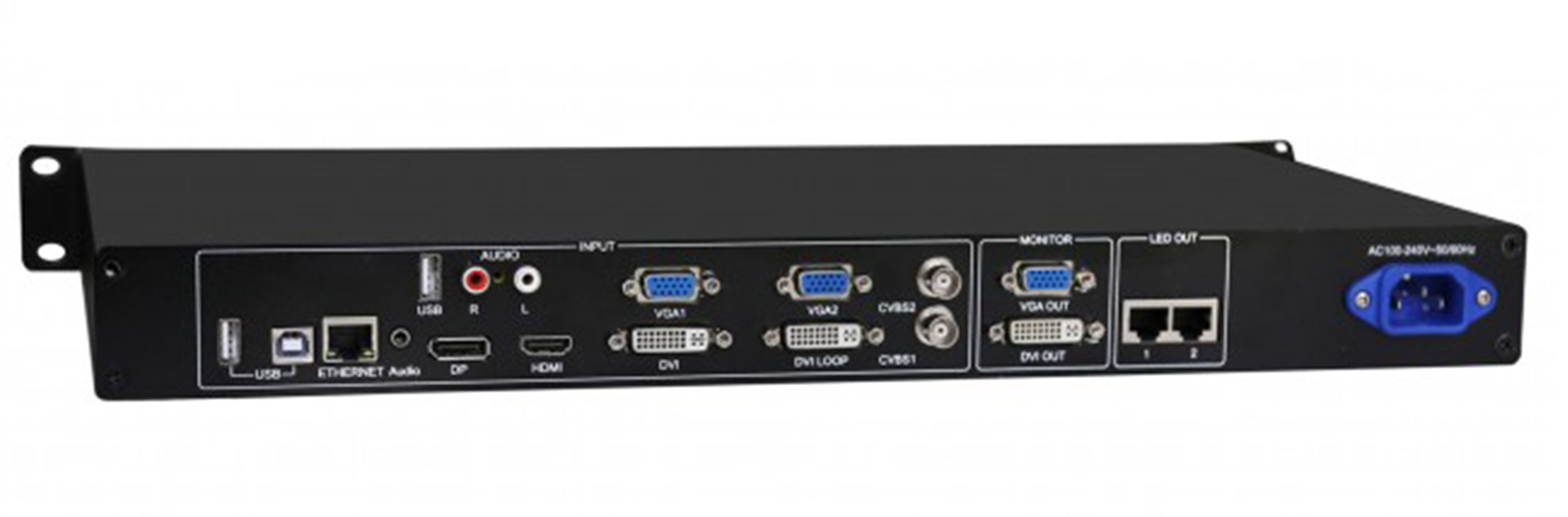

Novastar VX2U

Product Type ：Video Controller

• Inputs ：HDMI, DVI, VGA × 2, CVBS × 2, DP

• Outputs ：Ethernet port × 2

• Loading Capacity ：1.3 million pixels (over 2 ports)

• Video Loop ：DVI LOOP

• Video Monitor ：DVI OUT

• Communication Mode ：USB/LAN

• Image Mosaic ：Support

• Crop Settings ：Support
