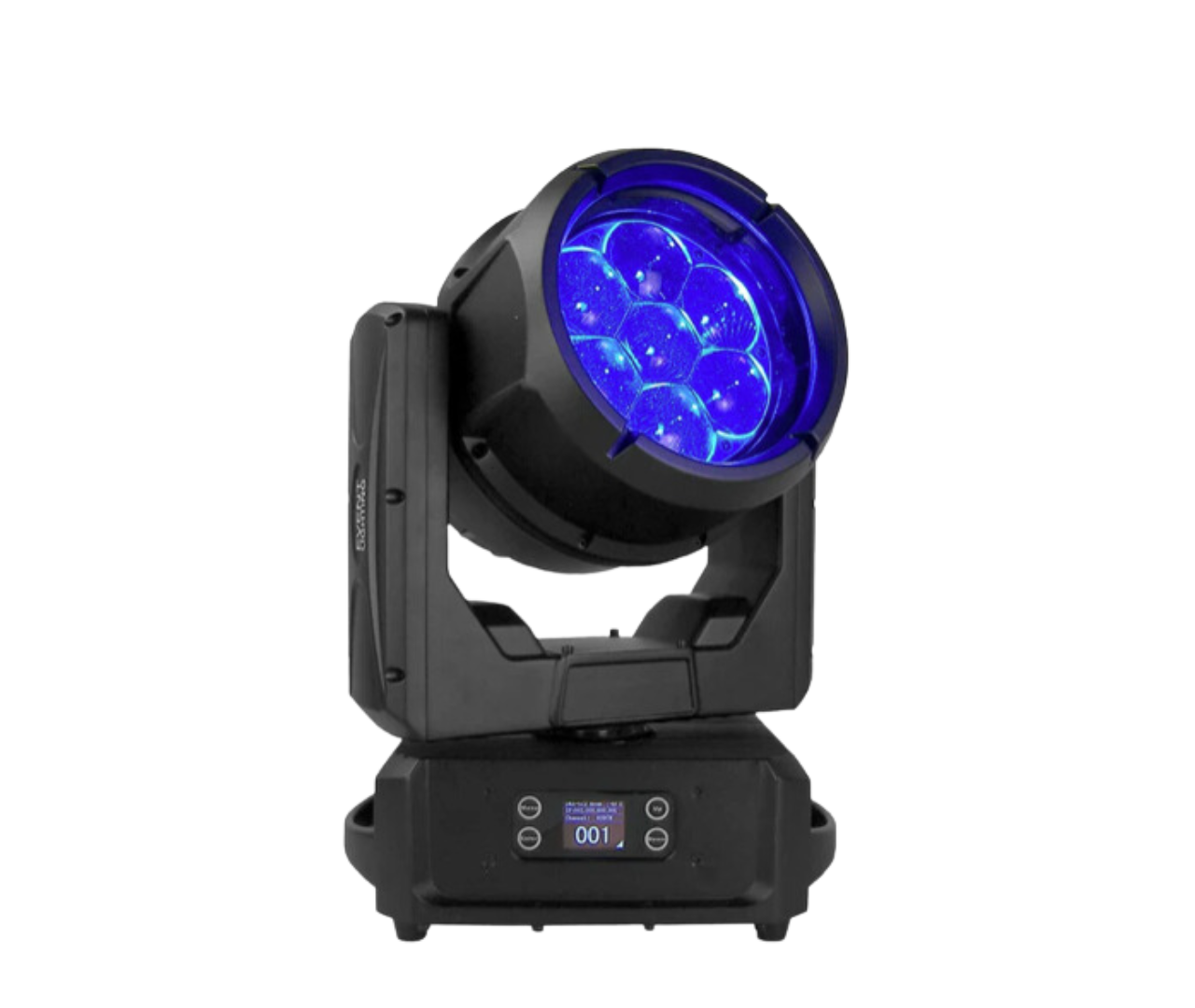

DELUGEM7X60WFX

Photometrics

  • Light Source:
    — 7 x 60W RGBW LEDs
    — 28 x 0.5W RGB LEDS

  • Beam Angle: 3° - 45°

  • Output: 2,700 lumen @ 3°; 3,207 lumen @ 32°

  • LED Lifespan: 50,000 hours

Effects

  • Dimming: 0-100%, 16 bit

  • Pixel Control: Yes

  • Aura LEDs Effects (RGB LEDs)

  • Strobe: Yes

  • Zoom: Motorised, 3° - 45°

Movement

  • Pan: 540°

  • Tilt: 205°

Power

  • Input Voltage: 100-240V AC, 50/60 Hz

  • Power consumption Max.: 700W

  • Connection: IP65 True1 in/out

Control

  • Operation Modes: DMX, auto, sound active, master/slave

  • Control Protocol: DMX, RDM, ArtNet, sACN

  • DMX Channels: 28 / 49 / 105 / 127

  • Control Interface: 5-pin DMX in/out, RJ45 in / out

  • Display: Full colour 180° reversible LCD control panel

  • Software upgrade via RJ45 cable

Housing

  • Housing Materials: ABS and steel, matte black finish

  • IP Rate: IP65

  • Size: 310 x 210 x 463 mm

  • Net Weight: 12 kg

  • Road Case: DELM7X60CASE4

  • 2 x Omega brackets included
