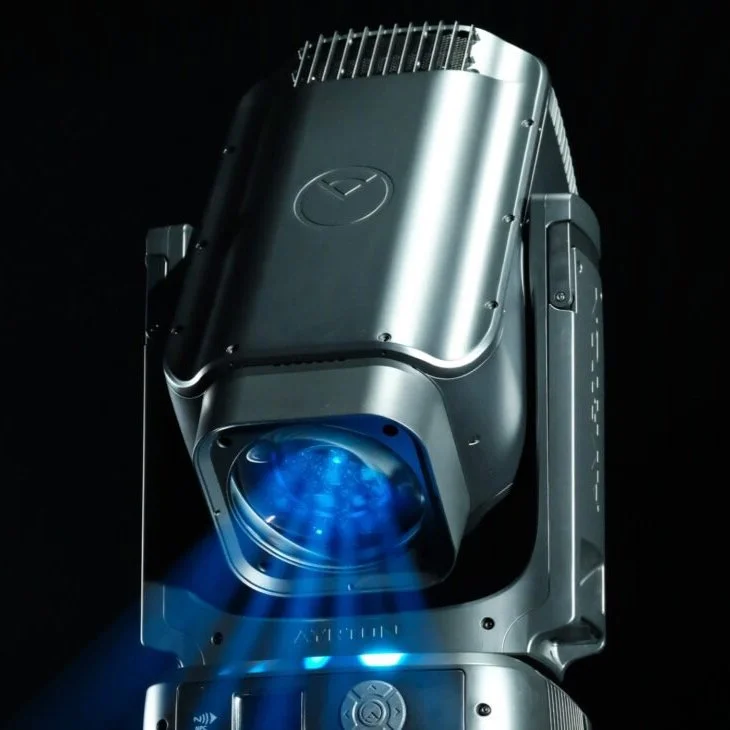

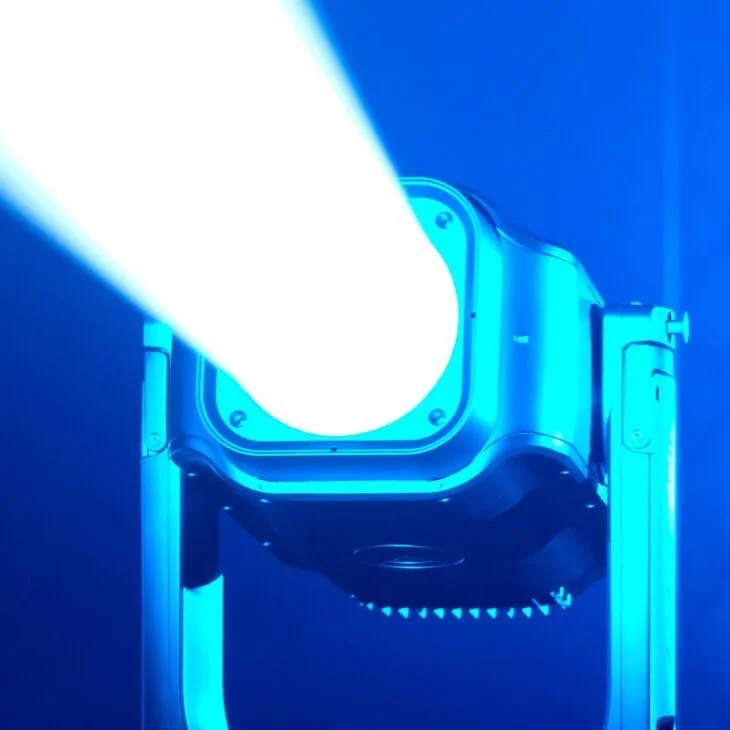

AYRTON RIVALE PROFILE
Technical specifications
OPTICS
13-element 13:1 zoom high-resolution optic system
Beam aperture: 4° to 52°
Fast motorised linear zoom
Tempered anti-reflective coated lenses

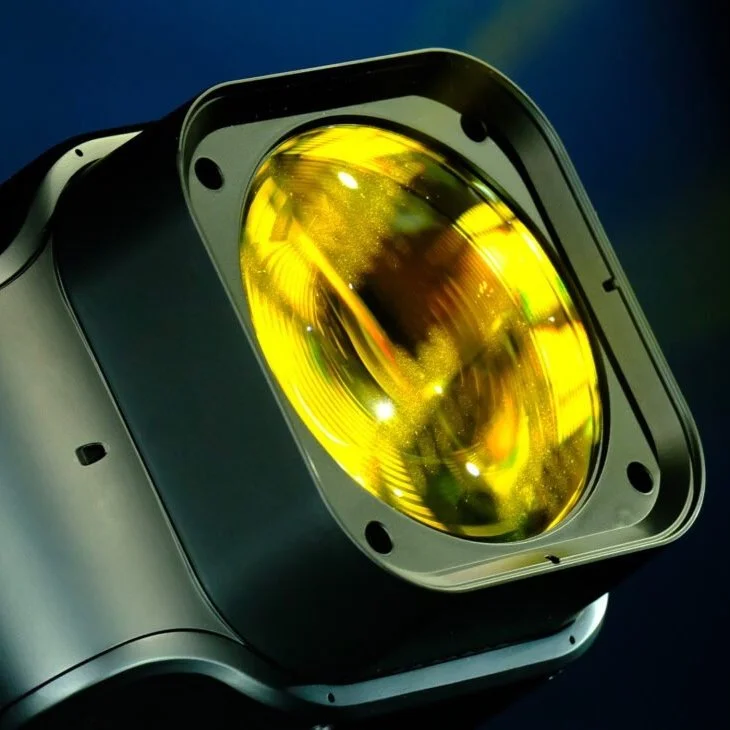

160 mm frontal lens
LIGHT SOURCE
35,000 lumens white light engine
Total luminaire output: up to 30,000 lumens (integrating sphere measurement, Stage Fan mode)
Colour temperature output: 6500 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CRI improvement filter
Fixed colour wheel with seven complimentary colours
GOBOS
Indexable rotating gobo wheel with seven high precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed gobo wheel with 9 high-precision glass gobos, plus open position
Gobo diameter: 25.5 mm
Image diameter: 18 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: +/- 90°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
FROST
2 frost filters one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions
2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set the functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male and female connectors for power connection
CONTROL
DMX 512 protocol, through IP65 DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
65 DMX channels footprint
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 700 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Super Silent Mode
Safety protection against temperatures excesses
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
OPERATING PARAMETERS
Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 ° C (113° F)
Minimum permitted ambient temperature (Ta min): -20 ° C (-4° F)
Minimum usage distance: 2 m (6.56 ft)
SIZE
Product: 360 x 675.5 x 315 mm (l x h x d)
Flight-case foam: 485 x 560 x 565 mm (l x h x d)
WEIGHT
Product: 30.8 kg\
